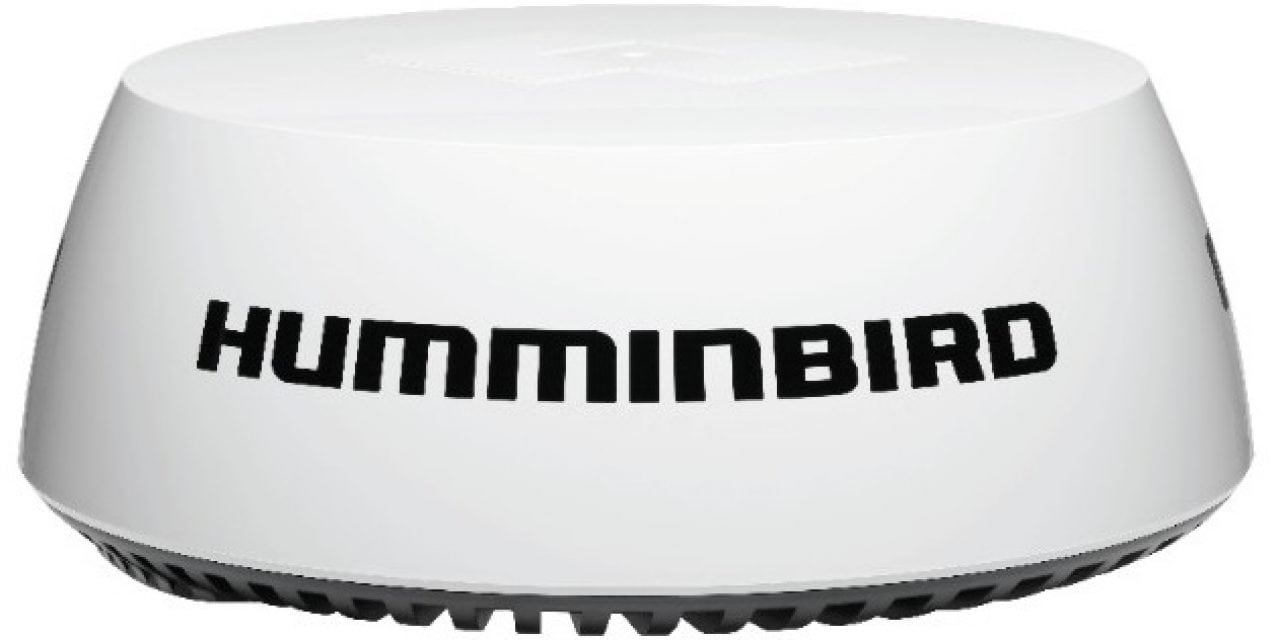

Humminbird® announces the introduction of a new compact solid state radar module, complete with CHIRP pulse compression technology for outstanding radar imaging at short and long ranges. The new CHIRP Radar offers exceptional target separation technology to display approaching weather, boats, rocks, buoys and landmarks with impressive resolution.
CHIRP Pulse Compression uses multiple radar pulses for increased target separation and detection, identifying targets with improved resolution over traditional magnetron radars, and optimized interference rejection. This translates to better situational awareness in low-visibility conditions. Track weather, vessels, obstacles, and monitor birds with amazing definition.
“Humminbird is excited to bring anglers and boaters the next generation of radar technology,” says Humminbird Brand Manager, Ray Schaffart. “Our new CHIRP Radar allows for improved navigation, and gives anglers an upper hand for monitoring birds and floating obstacles, often the sentinels of sought-after gamefish.”
Boaters will discover that Humminbird CHIRP Radar offers a compact footprint, installs easily and boots quickly for immediate use. It can also be paired with compatible Humminbird equipment to serve as a great navigational and safety addition.
Specifications:
Antenna Dimension: 21” Enclosed Dome
Antenna Type: Patch Array
Peak Power Output: 20W
Transmit Frequency: 9354 to 9446 MHz
Beamwidth (nominal): 4.9° Horizontal, 20° Vertical
Input Voltage: 12 or 24 Vdc (Min: 10.8V; Max 31.2V)
Networking: Ethernet
Power Consumption: Transmit mode 17W; standby mode 7W
Max. Range Scale: 1/16 to 24 nautical miles
Duplexer: Circulator
Pulse Widths (3 dB): 40 ns to 14.7 µs
CHIRP lengths: 400 ns to 20 µs
CHIRP Bandwidth: Up to 32 MHz
IF Bandwidth: 26 MHz
Noise: Less than 4 dB
Polarization: Horizontal
Waterproofing: IPX6
Weight: 5.6 kg (12.3 lb)
Compatibility: All networking HELIX models and ONIX
For more information visit humminbird.com, contact Humminbird, 678 Humminbird Lane, Eufaula, AL 36027, or call 800-633-1468.
About Johnson Outdoors Marine Electronics, Inc.
Johnson Outdoors Marine Electronics, Inc. is a wholly owned subsidiary of Johnson Outdoors and consists of the Humminbird®, Minn Kota® and Cannon® brands. Humminbird® is a leading global innovator and manufacturer of marine electronics products including fishfinders, multifunction displays, autopilots, ice flashers, and premium cartography products. Minn Kota® is the world’s leading manufacturer of electric trolling motors, as well as offers a complete line of shallow water anchors, battery chargers and marine accessories. Cannon® is the leader in controlled-depth fishing and includes a full line of downrigger products and accessories.
